The Rock Cycle

British & IGCSE › Checkpoint 6 › Checkpoint 6 Science — Complete Course

You met the three rock types on the page Rocks and Fossils. This page shows how rocks change from one type into another, again and again, over millions of years. This never-ending loop is called the rock cycle.

Key words

1. The rock cycle diagram

Follow the arrows from Magma: magma solidifies into igneous rock → weathering and erosion break it into sediment → sedimentation and burial turn the sediment into sedimentary rock → heat and pressure (metamorphism) change it into metamorphic rock → melting turns it back into magma. Then the cycle starts again.

2. The processes one by one

Melting and solidification — making igneous rock

Deep inside the Earth it is extremely hot. Rock that is pushed down far enough melts to form magma. Magma is less dense than the solid rock around it, so it slowly rises. When it cools it solidifies (becomes solid) and crystals grow:

• Inside the Earth the magma cools slowly → crystals have a long time to grow → large crystals (e.g. granite).

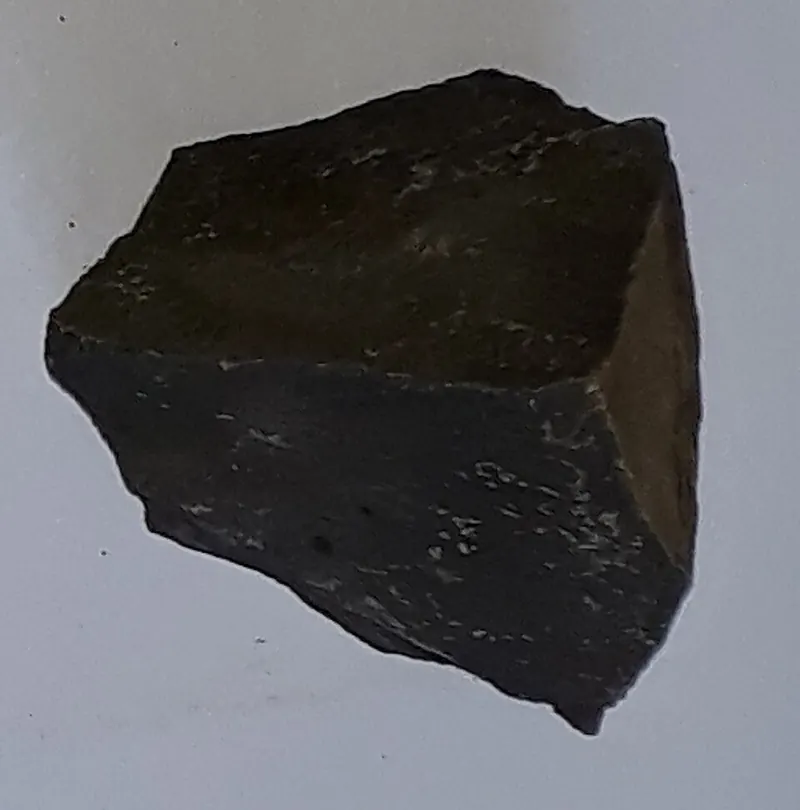

• At the surface lava from a volcano cools quickly → crystals have little time to grow → small crystals (e.g. basalt).

Erosion — breaking rocks down and moving them

When rocks are at the surface, the weather slowly breaks them into pieces (weathering): rain gets into cracks; in deserts, rocks heat up by day and cool at night, so the outside layers crack and flake off; plant roots grow into cracks and split rock apart. The pieces are then carried away by rivers, wind, waves and ice (erosion). As they are carried, they knock against each other and become smaller and rounder — that is why sedimentary rocks have rounded grains.

Sedimentation and burial — making sedimentary rock

When a river reaches a lake or the sea it slows down and drops its load. The sediment settles in flat layers (sedimentation). Over millions of years more layers are laid on top (burial). The weight of the layers above presses the grains together and squeezes out the water (compaction), and dissolved minerals glue the grains together (cementation). The sediment has become sedimentary rock.

Metamorphism — making metamorphic rock

If sedimentary or igneous rock is buried very deep, or is next to hot magma, it is heated and squeezed. It does not melt, but its minerals slowly change into new, harder crystals that are often lined up in bands. This is metamorphism. For example, limestone → marble; mudstone → slate.

Uplift — back to the surface

Movements of the Earth's crust can slowly push buried rocks upwards — this is how mountains are made. Once the rock is at the surface, weathering and erosion begin again. Uplift is the reason we can find fossils from the sea bed high up in mountains and deserts.

3. A journey through the rock cycle

Here is one possible journey, using Egypt as the setting:

1. Millions of years ago, magma cooled slowly underground and solidified into the granite of Aswan (igneous rock).
2. Uplift brought the granite to the surface. Heat, cold and water weathered it, and the Nile eroded the pieces and carried sand grains downstream.
3. Where the river slows near the sea, the grains settle in layers (sedimentation) in the Delta and the Mediterranean.
4. Over millions of years, more layers bury them (burial); they are pressed and cemented into sandstone (sedimentary rock).
5. If that sandstone is buried even deeper and heated and squeezed (metamorphism), it becomes quartzite (metamorphic rock).
6. If it is pushed deeper still it may melt into magma — and the journey begins again.

Worked examples

Worked example 1 — A mountain is made of granite. Describe how some of this granite could become part of a sedimentary rock. [3 marks]

• The granite is weathered and eroded into small pieces, which are carried away by a river (1 mark).
• The pieces settle in layers at the bottom of a lake or sea — sedimentation (1 mark).
• More layers bury them; the weight presses them together and they are cemented into sedimentary rock (1 mark).

Exam tip: three marks = three stages. Use the key words from the curriculum: erosion, sedimentation, burial.

Worked example 2 — Basalt forms when lava cools on the surface of the Earth. (a) Name the process when lava turns into solid rock. [1] (b) Explain why basalt has small crystals. [1]

• (a) Solidification (accept: cooling / freezing).
• (b) The lava cools quickly at the surface, so the crystals have little time to grow.

Worked example 3 — Describe how an igneous rock could become a metamorphic rock without first becoming sediment. [2 marks]

• The igneous rock is buried deep underground (or is close to hot magma) (1 mark).
• It is heated and squeezed (pressure) but does not melt, so its minerals change → metamorphic rock (1 mark).

Common mistake: writing 'it melts'. If it melts, it becomes magma and then igneous rock again.

Worked example 4 — Complete the sentences using words from the box: burial, erosion, melting, solidification. [4 marks]

1. Rock that is heated deep underground until it becomes liquid is going through ________.
2. When magma cools and becomes solid, this is called ________.
3. Rivers carrying away pieces of rock is an example of ________.
4. Layers of sediment being covered and pressed together by more layers is ________.

Answers: 1 melting; 2 solidification; 3 erosion; 4 burial (1 mark each).

Worked example 5 — Explain why scientists use a diagram (a model) to describe the rock cycle. [1 mark]

• The changes are far too slow (millions of years) and happen deep underground, so we cannot watch them; the model shows all the stages and how they link together (1 mark for either idea).
