Light: Reflection and Refraction

British & IGCSE › Checkpoint 6 › Checkpoint 6 Science — Complete Course

1. Light travels in straight lines

Light comes from light sources such as the Sun, a lamp, a torch or a flame. Light travels in straight lines. We show the path of light with a ray: a straight line drawn with a ruler, with an arrow showing which way the light is going.

Most things around you are not light sources. You see a book because light from a source reflects (bounces) off the book and travels into your eyes. So in any diagram about seeing, the arrows must point from the source, to the object, and into the eye — never out of the eye.

2. Reflection from a plane mirror

When a ray of light hits a plane mirror it changes direction and bounces off. A plane mirror is very smooth, so it reflects light in a neat, predictable way. To describe the direction we draw the normal: a dashed line at 90° to the mirror at the point where the ray hits. Then we measure both angles from the normal.

• A ray that hits the mirror along the normal (angle of incidence 0°) reflects straight back the way it came.
• A ray with a bigger angle of incidence gives an equally bigger angle of reflection: 20° → 20°, 55° → 55°.
• Smooth, shiny surfaces (mirrors, still water, polished metal) reflect light regularly, so you see a clear image. Rough surfaces (paper, cloth) scatter the light in all directions, so no image forms — but you can still see the paper because some of that scattered light reaches your eye.

How to draw a reflected ray — step by step

1. Mark the point where the incident ray meets the mirror.
2. Draw the normal with a ruler and protractor: a dashed line at 90° to the mirror through that point.
3. Measure the angle of incidence between the incident ray and the normal (not the mirror).
4. On the other side of the normal, measure the same angle and draw the reflected ray with a ruler.
5. Add arrows: towards the mirror on the incident ray, away from the mirror on the reflected ray.

3. Using mirrors: the periscope and mirror images

A periscope lets you see over a wall or out of a submarine. It is a tube with two plane mirrors, each at 45°. Light from the object hits the top mirror and is reflected down the tube (it turns through 90°). It then hits the bottom mirror and is reflected through 90° again, out into your eye.

Your image in a plane mirror is the same size as you, the same distance behind the mirror as you are in front, the right way up, but reversed left to right: lift your right hand and the image lifts its left hand. This is why some ambulances have the word AMBULANCE written backwards on the front — drivers in front read it the right way round in their mirrors.

4. Refraction: light bending between media

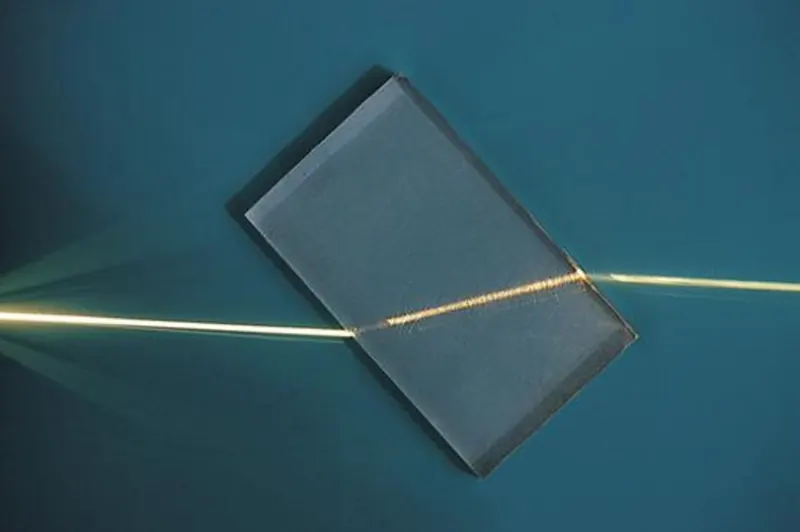

Light travels at different speeds in different media: fastest in air, slower in water, slower still in glass. When a ray passes from one transparent medium into another at an angle, the change of speed makes it change direction at the boundary. This bending is called refraction.

Refraction explains many everyday things:

• A straw in a glass of water looks bent or broken at the water surface.
• A swimming pool or a pond looks shallower than it really is — be careful before jumping in.
• Your legs look shorter when you stand in a pool.
• Lenses in glasses, magnifying glasses, cameras and microscopes are shaped so that refraction bends the light to make clear or bigger images.
• The "coin trick" below.

5. Reflection or refraction?

6. Worked examples

Worked example 1 — A ray of light hits a plane mirror. The angle of incidence is 35°. (a) What is the angle of reflection? [1] (b) What is the angle between the incident ray and the reflected ray? [1]

Answer: (a) 35° (angle of incidence = angle of reflection). (b) Both angles are measured from the normal on opposite sides, so the total is 35° + 35° = 70°.

Worked example 2 — A ray makes an angle of 60° with the surface of a mirror. Work out the angle of reflection. Show your working. [2]

Working: angle of incidence = 90° − 60° = 30° (1 mark). Angle of reflection = angle of incidence = 30° (1 mark). Common mistake: answering 60° — that angle is measured from the mirror, not the normal.

Worked example 3 — Explain how a periscope lets Karim see a football match over a high wall. [2]

Answer: Light from the match hits the top mirror and is reflected down the tube (1 mark). It is then reflected by the bottom mirror, out of the tube into Karim's eye (1 mark). (Extra detail that shows understanding: the mirrors are at 45°, so each turns the light through 90°.)

Worked example 4 — A ray of light travels from air into a glass block at an angle. Ring the correct word in each sentence. [2]

• The ray bends towards / away from the normal as it enters the glass. → towards (it slows down).
• The ray bends towards / away from the normal as it leaves the glass into the air. → away from (it speeds up).
• What is the name of this bending of light? → refraction.

Worked example 5 — Explain why a coin at the bottom of a cup appears when water is poured in. [2]

Answer: Light from the coin is refracted (bends) when it passes from the water into the air (1 mark). It bends away from the normal, so it passes over the rim of the cup and reaches the eye (1 mark). Common mistake: saying the coin "floats up" — the coin does not move, only the light changes direction.

Worked example 6 (investigation) — Hana shines a ray from a ray box at a plane mirror and measures the angles with a protractor.

1. (a) Describe the pattern. [1] → The angle of reflection is (about) equal to the angle of incidence.
2. (b) Which result is anomalous? [1] → 45° (for 60°) — it should be about 60°.
3. (c) Suggest why 31° and 49° are not exactly 30° and 50°. [1] → small errors in drawing the ray or reading the protractor (the ray is quite wide).
4. (d) How could Hana make her results more reliable? [1] → repeat each measurement and use a narrow ray / sharp pencil; repeat the anomalous one.
